docs(subscriptions): POST /api/subscriptions/card-on-file ($0 setup-mode session)

[sweetmantech]

Documents POST /api/subscriptions/card-on-file ahead of the api implementation, so the route ships against a published contract.

The endpoint exposes the existing api/lib/stripe/createCardOnFileSession.ts helper over HTTP: a Stripe mode: "setup" checkout session that saves a payment method against the account's Stripe customer with no charge today and no subscription. It is what lets an account that later hits zero credits be auto-recharged instead of dead-ending.

Contract

Endpoint	POST /api/subscriptions/card-on-file
Auth	Privy bearer or x-api-key (same as POST /api/subscriptions/sessions)
Body	{ "successUrl": "https://..." } — required, must be a valid URL
200	{ "id": "cs_...", "url": "https://checkout.stripe.com/..." } (flat, no data wrapper)
400	missing or invalid body
401	missing or invalid credentials
500	internal error

The account is always resolved from the credentials. accountId is never accepted from the caller, which is why this endpoint gets its own CreateCardOnFileSessionRequest schema (successUrl only) rather than reusing CreateSubscriptionSessionRequest. The response and error envelopes are reused from the sessions endpoint unchanged.

Changes

• api-reference/openapi/accounts.json — new /api/subscriptions/card-on-file path plus the CreateCardOnFileSessionRequest schema; additive edits only, spec re-validated as parseable JSON
• api-reference/subscriptions/card-on-file-create.mdx — frontmatter-only reference page
• docs.json — registered in the Accounts > Billing group so the page lands in llms.txt

Merge order

Merge this before the api PR that implements the route (linked from that PR).

Part of recoupable/chat#1910

🤖 Generated with Claude Code

---

Summary by cubic

Documents POST /api/subscriptions/card-on-file, a $0 Stripe setup-mode Checkout session that saves a card for the authenticated account. Sets the public contract ahead of the API so apps can integrate; aligns with recoupable/chat#1910.

• New Features

  • OpenAPI: added /api/subscriptions/card-on-file and CreateCardOnFileSessionRequest (successUrl only); reuses CreateSubscriptionSessionResponse and SubscriptionSessionErrorResponse.
  • Auth: bearerAuth (Privy) or apiKeyAuth; account is derived from credentials (no accountId).
  • Docs: added reference page and registered it under Billing navigation.

• Bug Fixes

  • OpenAPI: made CreateSubscriptionSessionResponse.url description payment-neutral (“complete Checkout”).
  • Docs: tightened the endpoint description and added per-status error examples for 400, 401, and 500.

^{Written for commit 3a95ee8. Summary will update on new commits.}

Summary by CodeRabbit

• New Features

  • Added an API endpoint to create a $0 checkout session for securely saving a payment method without initiating a subscription or charge.
  • Added request documentation, including the required success redirect URL and error responses.

• Documentation

  • Added a dedicated API reference page for creating card-on-file sessions.
  • Added the page to the Accounts → Billing documentation navigation.

[cursor]

Bugbot is not enabled for your account, so this pull request was not reviewed.

Enable Bugbot in the Cursor dashboard to get automatic reviews on future PRs.

[coderabbitai]

📝 Walkthrough

Walkthrough

The API documentation adds a card-on-file session endpoint, its required success URL request schema, a dedicated reference page, and a Billing navigation entry.

Changes

Card-on-file API

Layer / File(s)	Summary
Card-on-file endpoint contract api-reference/openapi/accounts.json	Adds POST /api/subscriptions/card-on-file, the CreateCardOnFileSessionRequest schema, and documented success and error responses.
API reference publishing api-reference/subscriptions/card-on-file-create.mdx, docs.json	Adds the API reference page and places it under Accounts → Billing navigation.

Estimated code review effort: 2 (Simple) | ~10 minutes

Suggested reviewers: arpitgupta1214

🚥 Pre-merge checks | ✅ 5

✅ Passed checks (5 passed)

Check name	Status	Explanation
Docstring Coverage	✅ Passed	No functions found in the changed files to evaluate docstring coverage. Skipping docstring coverage check.
Linked Issues check	✅ Passed	Check skipped because no linked issues were found for this pull request.
Out of Scope Changes check	✅ Passed	Check skipped because no linked issues were found for this pull request.
Description Check	✅ Passed	Check skipped - CodeRabbit’s high-level summary is enabled.
Title check	✅ Passed	The title clearly identifies the new documented subscription endpoint and its setup-mode purpose.

✨ Finishing Touches

🧪 Generate unit tests (beta)

• Create PR with unit tests
• Commit unit tests in branch docs/1910-card-on-file

---

Thanks for using CodeRabbit! It's free for OSS, and your support helps us grow. If you like it, consider giving us a shout-out.

❤️ Share

• X
• Mastodon
• Reddit
• LinkedIn

_{Comment @coderabbitai help to get the list of available commands.}

[coderabbitai]

Actionable comments posted: 1

🤖 Prompt for all review comments with AI agents

Verify each finding against current code. Fix only still-valid issues, skip the
rest with a brief reason, keep changes minimal, and validate.

Inline comments:
In `@api-reference/openapi/accounts.json`:
- Around line 816-825: Update the description of the shared
CreateSubscriptionSessionResponse.url field to use payment-neutral wording,
replacing language that instructs callers to complete a payment with wording
that instructs them to complete Checkout. Keep the schema reference and endpoint
response structure unchanged.

🪄 Autofix (Beta)

Fix all unresolved CodeRabbit comments on this PR:

• Push a commit to this branch (recommended)
• Create a new PR with the fixes

---

ℹ️ Review info

⚙️ Run configuration

Configuration used: defaults

Review profile: CHILL

Plan: Pro Plus

Run ID: 9fb01d06-9c31-4d1c-b746-ddafa1d943d8

📥 Commits

Reviewing files that changed from the base of the PR and between 96169e6 and 6fa718a.

📒 Files selected for processing (3)

• api-reference/openapi/accounts.json
• api-reference/subscriptions/card-on-file-create.mdx
• docs.json

[cubic-dev-ai]

All reported issues were addressed across 3 files

<sub>Reply with feedback, questions, or to request a fix.

Re-trigger cubic</sub>

[sweetmantech]

KISS

• actual: 4+ sentences.
• required: 2-3 sentences. Concise.

[sweetmantech]

Fixed in 3a95ee8: cut from 5 sentences to 3 (324 chars), calibrated against the sibling subscriptions/sessions description (3 sentences / 204 chars) rather than an arbitrary target. Dropped the accountId-is-never-accepted restatement (the Authorizations section already covers it, and the sibling does not repeat it) and folded the "use it so..." sentence into the setup-mode one. Rendered result verified locally, screenshots in the verification comment.

[sweetmantech]

Local verification (Mintlify dev server)

Ran npx mintlify@latest dev against this branch and walked the rendered page. Two things fixed in 3a95ee8 as a result: your KISS note, plus a rendering bug I found while testing.

Your review note: description was 5 sentences

Fixed. Cut to 3, calibrated against the nearest sibling (POST /api/subscriptions/sessions, 3 sentences / 204 chars) rather than an arbitrary target.

	Sentences	Chars
Before	5	510
After	3	324
Sibling subscriptions/sessions	3	204

What was cut: the sentence restating that accountId is never accepted from the caller (already conveyed by the Authorizations section, and the sibling does not repeat it either), and the standalone "Use it so..." sentence, folded into the setup mode sentence.

Found while testing: every error tab showed the same 400 message

The shared SubscriptionSessionErrorResponse schema carries one field-level example ("successUrl is required"), and Mintlify renders that under every status tab that references the schema. So the 401 tab claimed {"error": "successUrl is required"} for what is actually an auth failure, and 500 said the same. Screenshot 3 below is that bug.

Fixed by adding per-response examples on this endpoint's 400/401/500. Each string is what the route actually returns, captured by probing the api preview from api#797 rather than invented:

Status	Documented example	Verified against
400	successUrl must be a valid URL	POST with {"successUrl":"not-a-url"}
401	Exactly one of x-api-key or Authorization must be provided	POST with no credentials
500	Internal server error	createCardOnFileSessionHandler.ts:37

Left the shared schema untouched on purpose, so this does not change how the sibling endpoint renders. Note for a follow-up: POST /api/subscriptions/sessions has the same defect and would benefit from the same treatment.

Results

#	Check	Result
1	accounts.json parses after edit	PASS (valid JSON)
2	Diff stays additive	PASS (+10 / -1; see note below)
3	Page renders at /api-reference/subscriptions/card-on-file-create	PASS (shot 1)
4	Nav placement	PASS, Accounts to Billing, directly after "Create Subscription Session", aria-current="page" when active (shot 4)
5	Endpoint bar	PASS, POST /api/subscriptions/card-on-file with a working "Try it"
6	Request schema	PASS, successUrl string<uri> required, description and example (shot 2)
7	Response schema	PASS, 200 returns id and url, both required
8	Status tabs present	PASS, 200 / 400 / 401 / 500 all documented and rendered
9	Status tabs show distinct, correct bodies	was FAIL, now PASS (shots 3 then 4)
10	Description length	was FAIL (5 sentences), now PASS (3)
11	Code samples generate	PASS across cURL, JS fetch, PHP

Screenshots

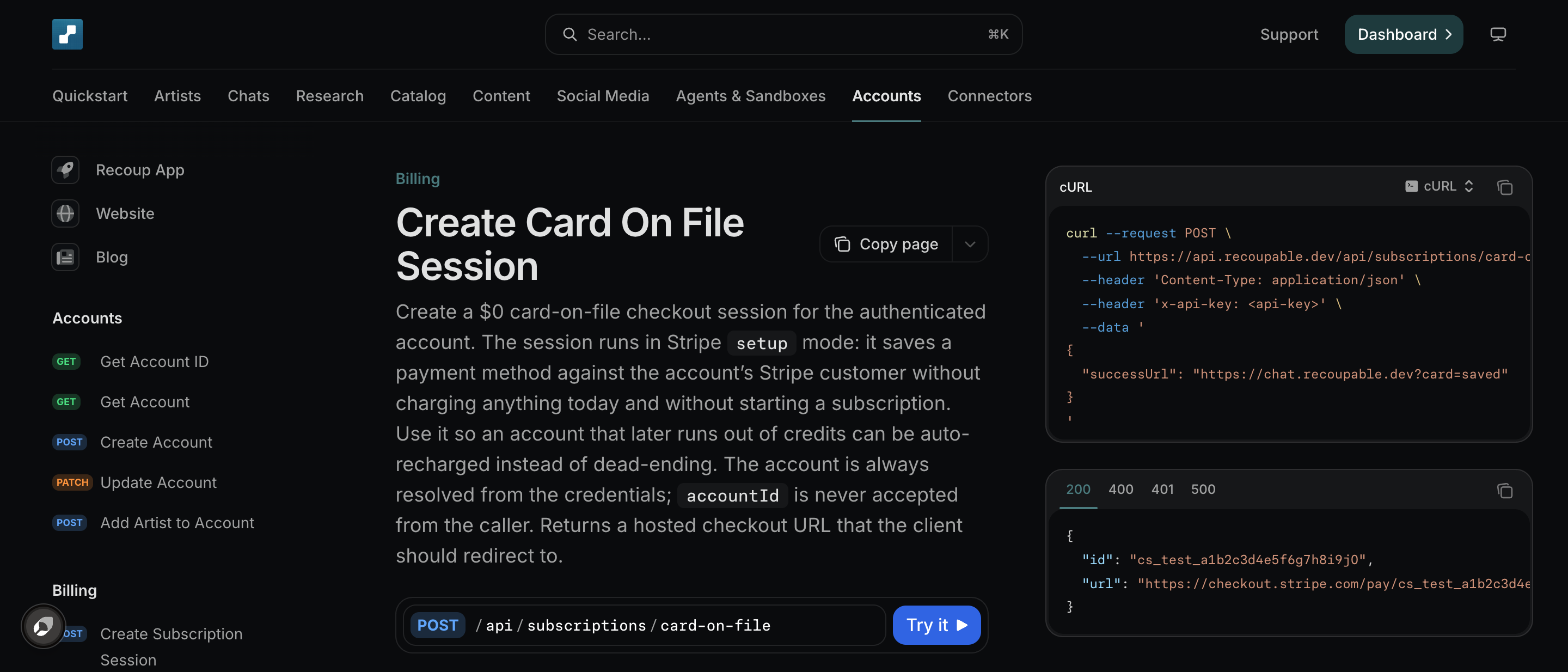

1. Endpoint page as rendered

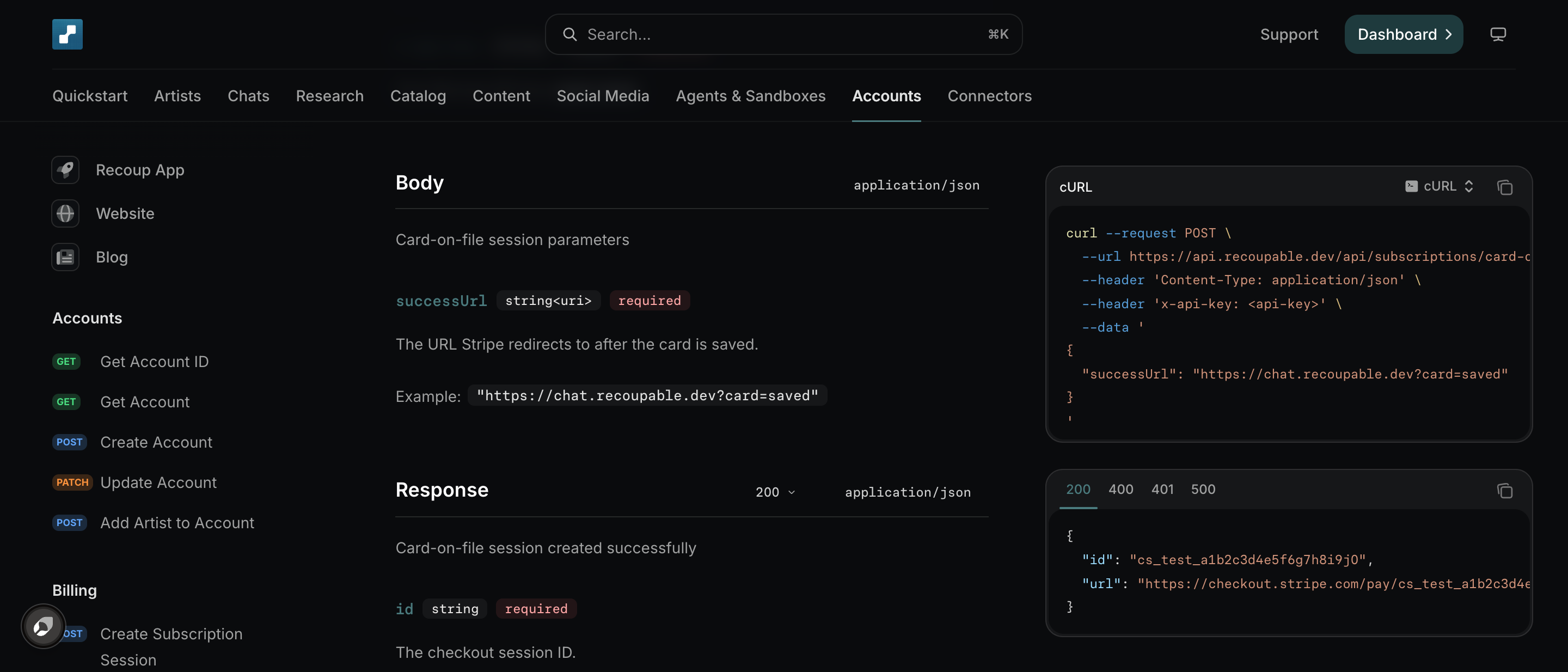

2. Request body and 200 response schema

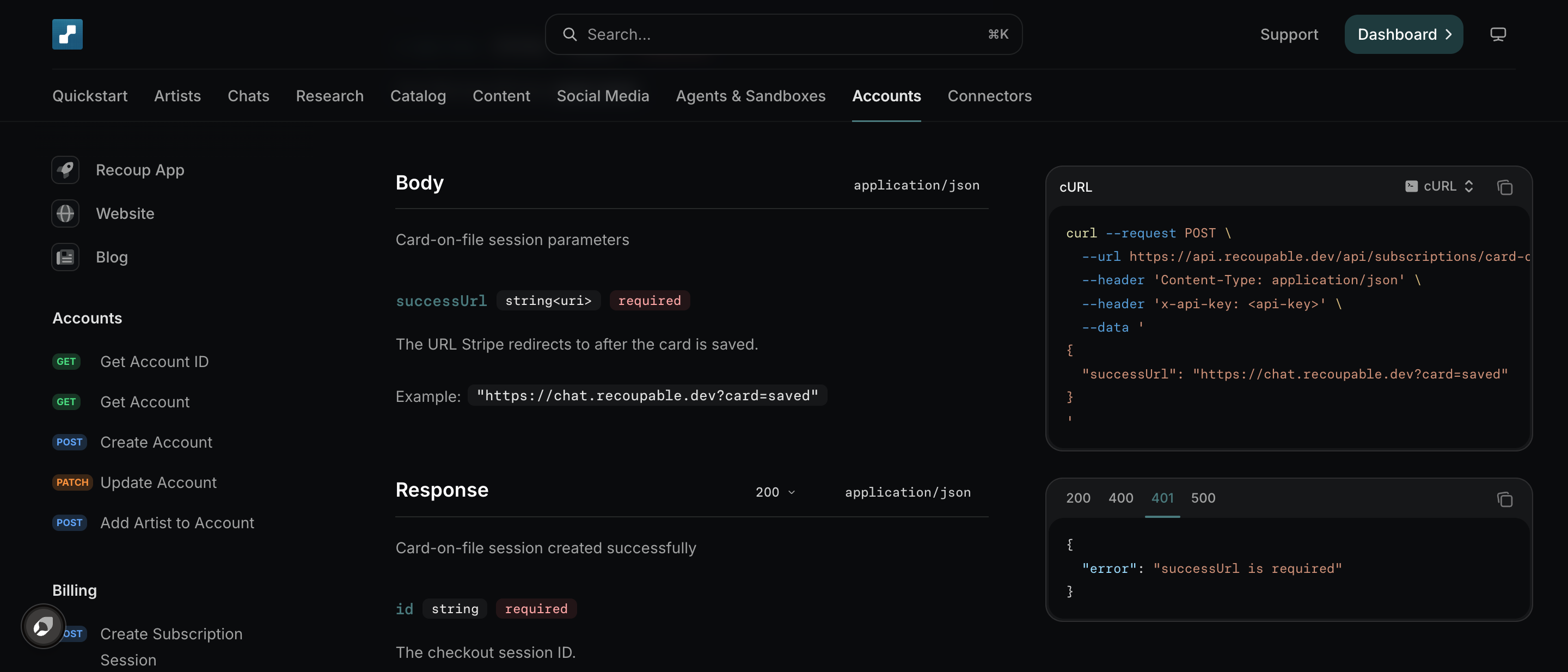

3. The bug: 401 tab showing a 400 message

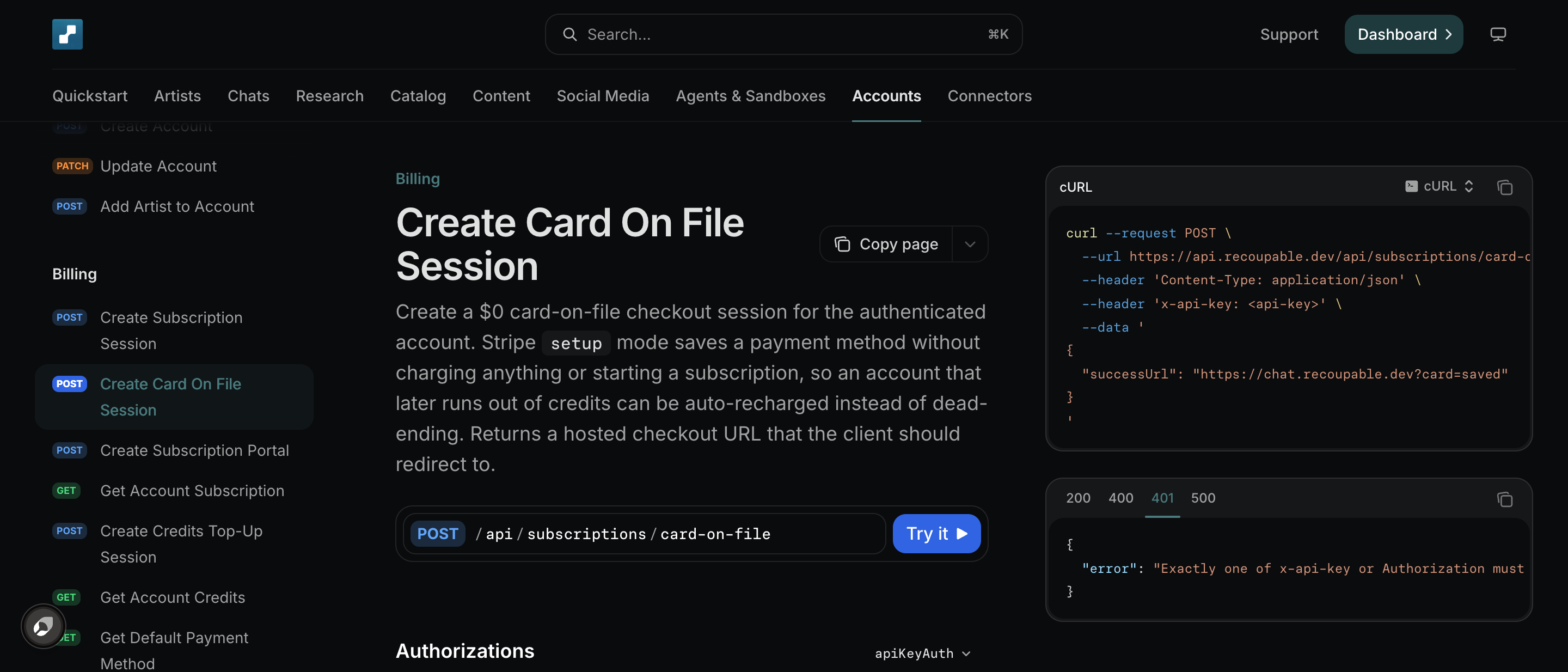

4. After the fix: 3-sentence description, and 401 showing the real auth error

Two notes on method

• Mintlify does not hot-reload the OpenAPI spec. MDX changes reload, but spec edits need a dev-server restart. I initially "verified" the old text against a stale server; the numbers above are from a clean restart.
• The first attempt at this edit reserialized the whole JSON (131 insertions for a 3-line change) because a json.load / json.dumps round-trip of accounts.json is not byte-identical. Reverted and redone as anchored text edits, which is why the diff is +10 / -1.

Part of recoupable/chat#1910. Merge order unchanged: this PR, then api#797, then marketing#60.
